2D Mini Vision Measuring Machine

Name: 2D Mini Vision Measuring Machine
Brand: SINOWON
Price: 1 USD

Quality 2D Mini Vision Measuring Machine for sale

Brand Name : SINOWON

Model Number : IVS-111

Certification : CE/ROHS

Place of Origin : Jiangmen, China

MOQ : 1 Sets

Price : Can be discussed

Payment Terms : L/C, T/T

Supply Ability : 100 Sets/Month

Delivery Time : 15 work days

Packaging Details : Plywood

Code# : 520-020

Workbench : (245x180)mm

Glass Workbench : (130x130)mm

X/Y Axis Travel : (100*100)mm

X/Y axis resolution : Resolution: 0.5um

Repeat Accuracy : 2um

Dimension (WxDxH) : (465*395*610)mm

Net Weight : 30Kg

Contact Now

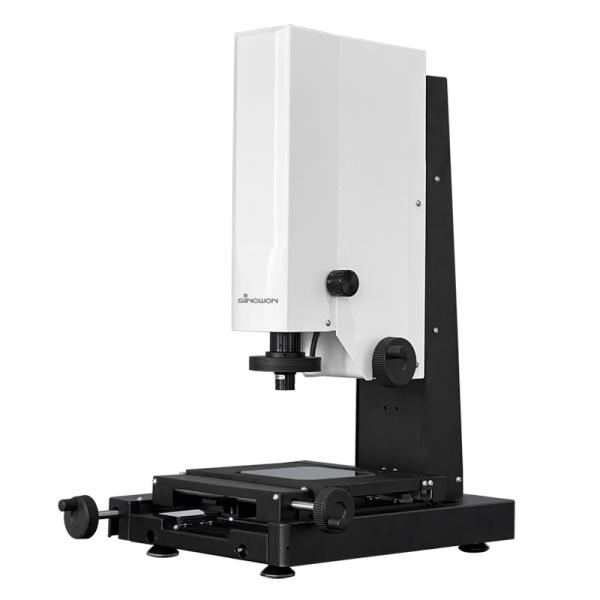

2D Mini Vision Measuring Machine IVS-111 Series

Product Characteristic:

l IVS-111 is a Sinowon new generation of portable 2D optical measuring system for the geometric dimension measurements;

l Adopt precision T6 aluminum base and column to ensure the stability and precision of the machine;

l Precision grade P V-shaped cross guide, non-slip rod, and quick-moving locking device to ensure that the workbench return error is within 2um;

l Adopt high-precision instrument optical ruler and precision worktable to ensure the accuracy of the machine is within≤3.0+L/200um;

l Powerful image measurement software, it can automatically output test reports in formats such as Word, Excel, PDF, TXT, dxf, etc.

Technical Specifications:

Commodity	2D Mini Vision Measuring Machine	2D Mini Instant Measuring Machine
Model	IVS-111Z	IVS-111T
Code#	520-020C	501-020C
Workbench	(245x180)mm	(245x180)mm
Glass Workbench	(130x130)mm	(130x130)mm
X/Y Axis Travel	(100*100)mm	(100*100)mm
Measurement Accuracy*	E1xy≤2.0+L/200(um)	E1xy≤3.0+L/200(um)
Lens	Optical Magnification 0.7X~4.5X	0.183X Telecentric Lens (OD 80mm)
Camera	1.6 MPixel HD camera	5 MPixel HD camera
Z Axis Travel	High-precision linear guide, effective travel 100mm
X/Y axis resolution	Resolution:0.5um
Repeat Accuracy	2um
X/Y Axis Drive system	Precision V-shaped cross guide, non-slip light rod, and quick-moving locking device
Illumination System	Surface infinitely adjustable LED cold Illumination
Illumination System	Contour LED Parallel Illumination
Measuring Software	iMeasuring 2.0	Geomea
Operation System	Support WIN 10/11-32/64 Operating System
Language	English, Simplified Chinese, Traditional Chinese, Optional other language versions
Working Environment	Temperature 20℃±2℃, temperature change < 1℃/Hr; Humidity 30%~80%RH; vibration 0.02g's, ≤15Hz.
Power Supply	AC220V/50Hz; 110V/60Hz
Dimension (WxDxH)	(465395610)mm
Net Weight	30Kg

Note:

L represents the measurement length, in millimeters, the mechanical accuracy of the Z axis
Computer system is optional, and the video magnification is approximate and depends on monitor size and resolution.
